ATRN is a new SMTP mechanism (RFC 2645) that allows you to temporarily hold mail for a remote mail server. Also known as ODMR (On Demand Mail Relay) this process makes it possible for the servers with unreliable Internet connections to have their own mail server without having a static IP address. Essentially, you can have your Exchange 2003 server on the Internet without paying for a T1 or static IP address assignments.

Unlike ETRN mechanism, the destination mail server is not published in the DNS so there is no need to create A or MX records. Furthermore, ATRN is more secure than ETRN because it is an authentication mechanism (Authenticated TURN as the name implies) that requires the remote SMTP server to provide authentication before the mail is sent. With ETRN a rogue SMTP server could hijack the static IP address and steal your email, a problem that the authentication layer solves. ATRN is also more convenient for planned downtime and maintenance intervals where you do not want mail arriving to your server just because of a higher MX priority required by ETRN.

The only bad news is that the Microsoft Exchange 2003 server is not fully RFC compliant, but as long as your setup is not too exotic it will work just fine. The only known issue applies when you try to authenticate with one server to download mail and another server to send (relay) mail.

This document will help you configure the destination mail server, also known as the ATRN client. You must have your own domain name and you must have a reliable SMTP server on the Internet configured to hold your mail and release it through the ATRN mechanism. So far this protocol is only supported by Microsoft Exchange 2003 (and Microsoft IIS 4 and above.) This document assumes that you are downloading email stored on the Microsoft Exchange 2003 ATRN server.

Creating an SMTP Connector

First start your Exchange System Manager, usually by clicking Start > All Programs > Microsoft Exchange > System Manager. Open your Connectors folder, right click and select New > SMTP Connector.

General Setup

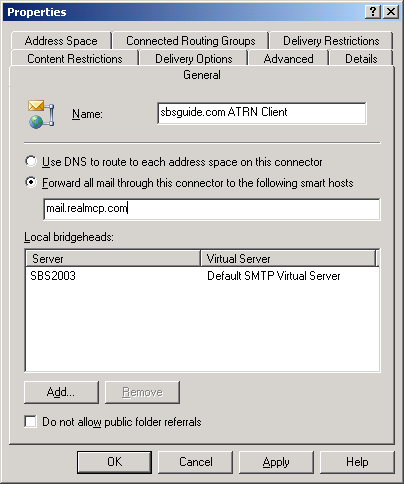

First give your SMTP Connector a friendly name. We are setting up an ATRN client so I called it sbsguide.com ATRN Client.

Because we do not have a permanent IP address on the Internet we will use our ISP’s ATRN server to relay our outgoing mail. This will keep the mail from appearing from a dynamic IP address and will keep us out of the spam filters. Select “Forward all mail through this connector to the following smarthosts” and enter the hostname of the ISP’s ATRN server.

Next, add your mail server as the local bridgehead for the SMTP connector. Click on Add and select your mail server.

Sending Email

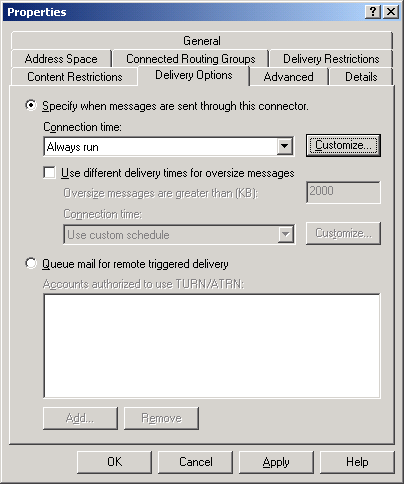

Because your outgoing mail will be sent through the ISP’s ATRN server, you need to create an SMTP connector schedule to tell your Exchange server when to send email. Select the Delivery Options tab and select “Specify when messages are sent through this connector.” By default, the connector runs all the time, but you can customize this schedule to run in 15 minute or one hour intervals during your office hours to keep long distance bills down (especially important for servers hosted in foreign countries where Internet is not cheap yet)

Selecting your domain name

Now that you have configured how the outbound mail will be sent, you need to list the domain names that you will be using for this connection. Select the Address Space tab and click on Add to add the domain you wish to use with this Exchange server. Make sure that the type of the address space is SMTP. To allow your local users to send mail through this connector you also need to check the “Allow messages to be relayed to these domains.”

Authenticating your server

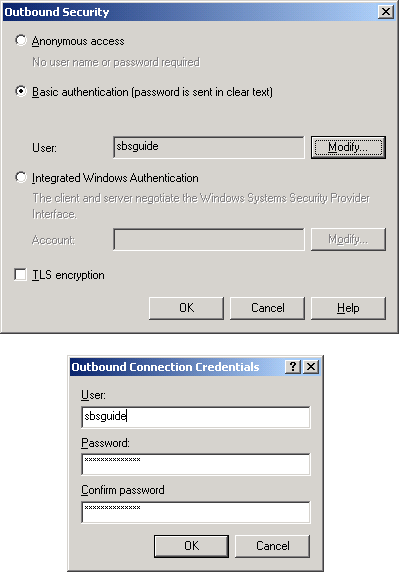

In order for you to download and send mail through the ISP’s ATRN server, you need to setup SMTP authentication. Select the Advanced Tab and click on Outbound Security.

Select Basic Authentication and click on Modify. You will be prompted to enter your username and password for this connection. This information should have been provided to you by your ISP. The username frequently takes the full domain and user id form, such as DOMAINsbsguide. Click on Ok a few times to get back to the Advanced tab.

Sending a TURN request

Finally, you need to tell your server to send a TURN request to your ISP’s ATRN server. Select “Request ETRN/TURN from different server” and type in your ISP’s ATRN server hostname. Click on Customize to create a custom schedule that fits your operating hours and finally select “Issue TURN (Requires Basic or Windows security)."

Final Steps

To apply settings described above you have to restart the Microsoft Exchange Routing Engine and the Simple Mail Transfer Protocol (SMTP) services.

Additionally, you have to point the MX record of your domain to your ISP’s ATRN server. When the mail is sent to your domain, it will be delivered to your ISP’s ATRN server where it will wait for your server to trigger delivery. In order for this process to work flawlessly your username/password/domain/hostname must match the information configured on your ISP's ATRN server. Presently, commercial support for ATRN is only provided by ExchangeDefender.
